Stack Frames & Function Prologues Demystified: x86-64 & ARM64 Guide

Last Updated on March 16, 2026 by Vivekanand

Understanding stack frame prologue epilogue patterns is essential for anyone working with low-level code, debugging, or reverse engineering. In Part 2 of this series, we explored calling conventions — the contracts that govern how functions pass arguments and preserve registers. Now we’ll dive into stack frames themselves.

Every function call creates a stack frame — a dedicated workspace on the stack that holds local variables, saved registers, and the breadcrumb trail back to the caller. The function prologue sets up this frame at the start of a function, while the epilogue tears it down before returning. These are the bookends of every function call.

This comprehensive guide covers stack frame prologue and epilogue patterns across:

Architecture	Platforms	ABI
x86-64	Linux, macOS	System V AMD64
x86-64	Windows	Microsoft x64
ARM64	Linux, macOS, Windows	AAPCS64

---

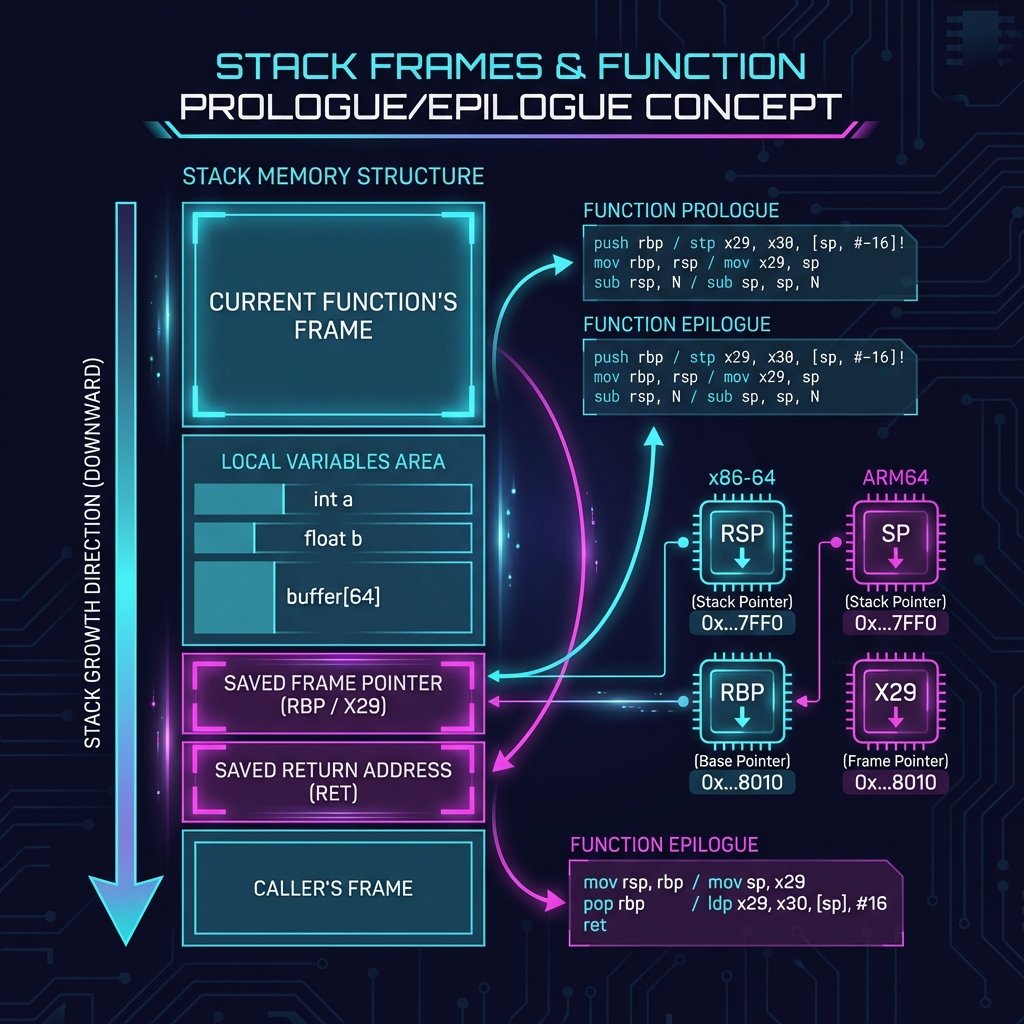

What Is a Stack Frame?

A stack frame (also called an activation record) is a contiguous block of memory on the stack allocated for a single function invocation. It contains:

• Return address — Where to resume execution after the function returns
• Saved frame pointer — The caller’s frame pointer (if frame pointers are used)
• Saved registers — Callee-saved registers that this function modifies
• Local variables — Function-local data
• Spill slots — Temporary storage for register values
• Outgoing arguments — Arguments for functions this function calls (stack-passed)

---

x86-64 Stack Frame Prologue Epilogue (System V ABI)

The System V AMD64 ABI is used on Linux, macOS, FreeBSD, and most Unix-like systems. Here’s how a typical stack frame is constructed:

Standard Prologue

push rbp          ; Save caller's frame pointer
mov rbp, rsp      ; Set up new frame pointer
sub rsp, N        ; Allocate N bytes for locals

This is the classic frame pointer-based prologue. After execution:

• RBP points to the saved frame pointer
• [RBP+8] contains the return address
• [RBP-8] and below hold local variables

Standard Epilogue

mov rsp, rbp      ; Deallocate locals
pop rbp           ; Restore caller's frame pointer
ret               ; Return to caller

Or using the leave instruction:

leave             ; Equivalent to: mov rsp, rbp; pop rbp
ret

Saving Callee-Saved Registers

If a function uses callee-saved registers (RBX, R12-R15), they must be preserved:

; Prologue
push rbp
mov rbp, rsp
push rbx          ; Save callee-saved registers
push r12
push r13
sub rsp, 32       ; Allocate locals (keep 16-byte aligned)

; ... function body ...

; Epilogue
add rsp, 32
pop r13
pop r12
pop rbx
pop rbp
ret

Red Zone Optimization

The System V ABI provides a 128-byte red zone below RSP that leaf functions can use without adjusting the stack pointer:

; Leaf function using red zone - no prologue needed!
mov [rsp-8], rdi  ; Store in red zone
mov [rsp-16], rsi
; ... compute ...
ret

Important: The red zone is only safe for leaf functions. Signal handlers and interrupts will clobber it.

---

x86-64 Stack Frame Prologue Epilogue (Windows x64)

Windows uses a different ABI with several unique requirements:

Shadow Space Requirement

Every function must reserve 32 bytes of shadow space for the first four register arguments, even if not used. Important: this shadow space is actually allocated by the caller in its own frame — before executing the call instruction — and it sits above the callee’s return address. The callee may optionally use it to spill its incoming register arguments (RCX, RDX, R8, R9) for debugging or varargs purposes. The key takeaway: the responsibility for allocating shadow space lies with the caller, not the callee.

; Windows x64 Prologue
push rbp
mov rbp, rsp
sub rsp, 48       ; 32 bytes shadow + 16 bytes locals (aligned)

Callee-Saved Registers

Windows has more callee-saved registers: RBX, RBP, RDI, RSI, R12-R15, and XMM6-XMM15:

; Saving XMM registers on Windows
sub rsp, 32
movaps [rsp], xmm6
movaps [rsp+16], xmm7

No Red Zone

Windows does not have a red zone. You must always adjust RSP before storing anything below it.

---

ARM64 Stack Frame Prologue Epilogue (AAPCS64)

ARM64 follows the AAPCS64 (Procedure Call Standard for ARM 64-bit Architecture). The prologue/epilogue patterns differ significantly from x86-64:

Standard Prologue

stp x29, x30, [sp, #-16]!  ; Save FP and LR, pre-decrement SP
mov x29, sp                 ; Set up frame pointer
sub sp, sp, #N              ; Allocate N bytes for locals

Key differences from x86-64:

• X29 is the frame pointer (equivalent to RBP)
• X30 (LR) holds the return address (not pushed by call)
• STP stores a pair of registers efficiently
• Pre-indexed addressing [sp, #-16]! combines store and decrement

Standard Epilogue

add sp, sp, #N             ; Deallocate locals
ldp x29, x30, [sp], #16    ; Restore FP and LR, post-increment SP
ret                         ; Return (uses X30)

Saving Callee-Saved Registers

ARM64 callee-saved registers are X19-X28 and D8-D15 (SIMD). They’re typically saved in pairs:

; Prologue with callee-saved registers
stp x29, x30, [sp, #-48]!  ; Save FP, LR
mov x29, sp
stp x19, x20, [sp, #16]    ; Save callee-saved pairs
stp x21, x22, [sp, #32]

; ... function body ...

; Epilogue
ldp x21, x22, [sp, #32]
ldp x19, x20, [sp, #16]
ldp x29, x30, [sp], #48
ret

Apple ARM64 Variations

Apple’s ARM64 ABI has some specific requirements:

• Pointer Authentication (PAC) — Return addresses may be signed
• BTI — Branch Target Identification for control flow integrity

; Apple ARM64 with PAC
pacibsp                    ; Sign return address
stp x29, x30, [sp, #-16]!
mov x29, sp

; ... function body ...

ldp x29, x30, [sp], #16
retab                      ; Authenticate and return

---

Frame Pointer Omission (FPO)

With optimizations enabled, compilers often omit the frame pointer to free up a register:

x86-64 Without Frame Pointer

; No frame pointer - RBP available for general use
sub rsp, 40       ; Allocate stack space
mov [rsp+8], rbx  ; Save callee-saved if needed

; ... use RBP as general register ...

mov rbx, [rsp+8]
add rsp, 40
ret

This makes debugging harder but provides an extra register. Use -fno-omit-frame-pointer to preserve frame pointers.

ARM64 Without Frame Pointer

; Leaf function - no frame setup needed
stp x19, x20, [sp, #-16]!  ; Save if using these registers
; ... function body using X29 freely ...
ldp x19, x20, [sp], #16
ret

---

Stack Alignment Requirements

Proper stack alignment is mandatory for correct execution:

Platform	Alignment	When Required
x86-64 System V	16-byte	Before CALL instruction
x86-64 Windows	16-byte	Before CALL instruction
ARM64	16-byte	Always (SP must be aligned)

Misalignment causes crashes on ARM64 and performance penalties (or crashes with SSE) on x86-64.

---

Practical Debugging: Walking the Stack

Understanding stack frame prologue epilogue patterns is essential for debugging. Here’s how to walk a stack manually:

x86-64 Stack Walk

// Walk the stack using frame pointers
void **frame = (void **)__builtin_frame_address(0);
while (frame) {
    void *return_addr = frame[1];  // [RBP+8]
    printf("Return address: %pn", return_addr);
    frame = (void **)frame[0];      // Follow saved RBP
}

ARM64 Stack Walk

// Walk the stack using frame pointers
void **frame = (void **)__builtin_frame_address(0);
while (frame) {
    void *return_addr = frame[1];  // Saved X30 (LR)
    printf("Return address: %pn", return_addr);
    frame = (void **)frame[0];      // Follow saved X29 (FP)
}

---

Quick Reference Table

Feature	x86-64 System V	x86-64 Windows	ARM64
Frame Pointer	RBP	RBP	X29
Stack Pointer	RSP	RSP	SP
Return Address	[RBP+8] (pushed by CALL)	[RBP+8]	X30/LR (saved manually)
Red Zone	128 bytes	None	None
Shadow Space	Not required	32 bytes (caller allocates)	Not required
Alignment	16-byte before CALL	16-byte before CALL	16-byte always

---

What’s Next

Now that you understand stack frame prologue epilogue patterns, you can:

• Debug more effectively — Read crash dumps and walk stacks manually
• Write correct assembly — Ensure proper register preservation and alignment
• Reverse engineer binaries — Identify function boundaries and local variables
• Understand compiler output — See how optimizations affect the generated code

In Part 4, we’ll explore program startup: what happens before main() runs, how the C runtime initializes, and where command-line arguments come from.

Experiment: Use Godbolt to compile the same function with different optimization levels (-O0, -O1, -O2, -O3) and watch how the stack frame prologue and epilogue evolve.

---

References

• System V AMD64 ABI Specification
• Microsoft x64 Calling Convention
• ARM AAPCS64 Specification
• Apple ARM64 Function Calling Conventions
